Redesigning the ground floor of automotive engineering.

Merging revolutionary motor and battery technology with cutting-edge thermally integrated aerodynamics to redefine sustainable mobility to a new class of lightweight performance.

Redesigning the ground floor of automotive engineering.

Project Technical Brief

The Specs

Dry Weight

3460

lbs

Dry Weight

3490

Battery Capacity

102

kWh

lbs

Battery Capacity

Power

830

120

hp

kWh

Torque

1092

lbft

Power

340

0-60 mph

1.8

sec.

hp

0-60 mph

2.9

sec.

Torque

922

lbft

Merging revolutionary motor and battery technology with cutting-edge thermally integrated aerodynamics to redefine sustainable mobility to a new class of lightweight performance.

Made to be a testing bed,

logging real miles,

collecting real data.

What began as a passion project has evolved into something more. Designed from the ground up to allow for hot-swapping of prototype components from the companies at the forefront of current research, the chassis is set to be lined with countless sensors to track and provide lifetime data otherwise largely inaccessible within labs. That data will then provide the blueprint for following iterations and improvements to be designed, build, and swapped in.

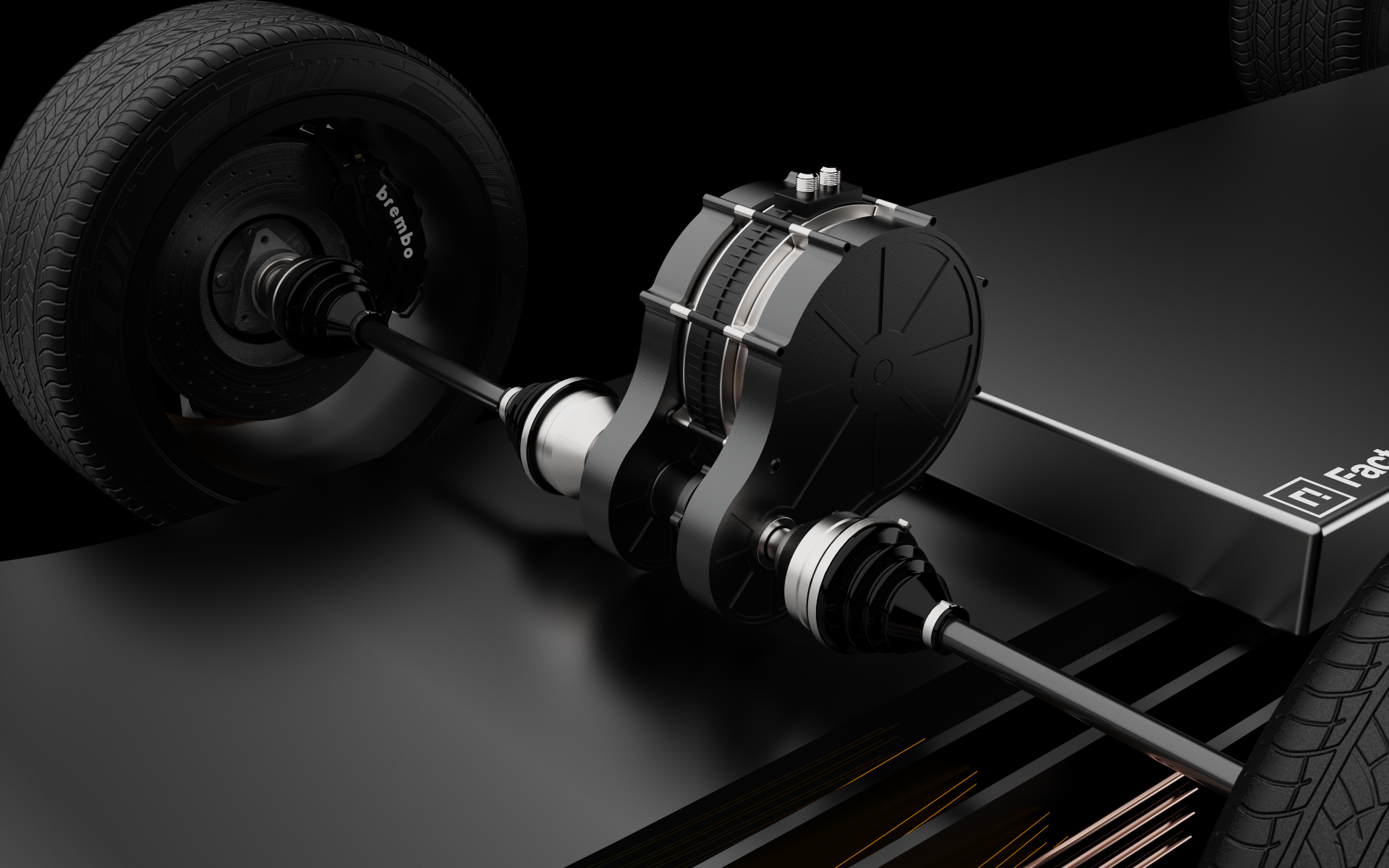

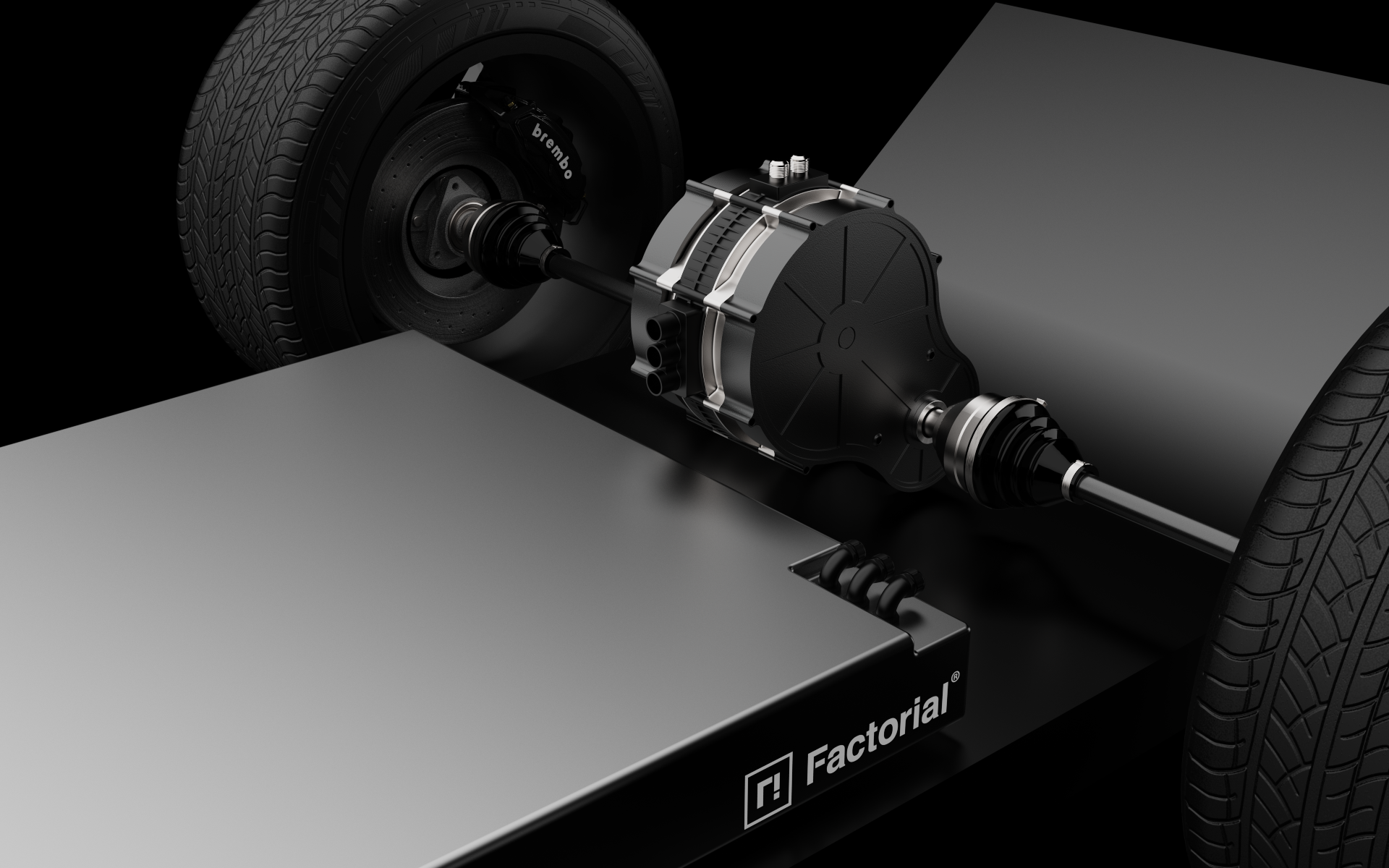

Built on a custom EV platform, based around a thermal transfer system integrated into the aerodynamic diffuser, both weight and drag are reduced while downforce and thermal exchange is increased. A system that is uniquely possible only for the next generation of EV’s due to such high energy efficiency and compact form factors.

  • Dual YASA P400 R motors, mechanically reduced 1.68:1 to increase torque output to the wheels.

  • Factorial Solid-State battery technology, 120 kWh

  • Copper heat pipe integrated thermal diffuser and on demand oil pump system

RaceBox Micro Telemetry Data Collection Chip

  • High Precision Accelerometer
    +/- 8G range

  • High Precision Gyroscope
    +/- 320dps range

  • 25Hz GNSS Module Simultaneous tracking of GPS, Glonass, Galileo, Beidou, SBAS, QZSS

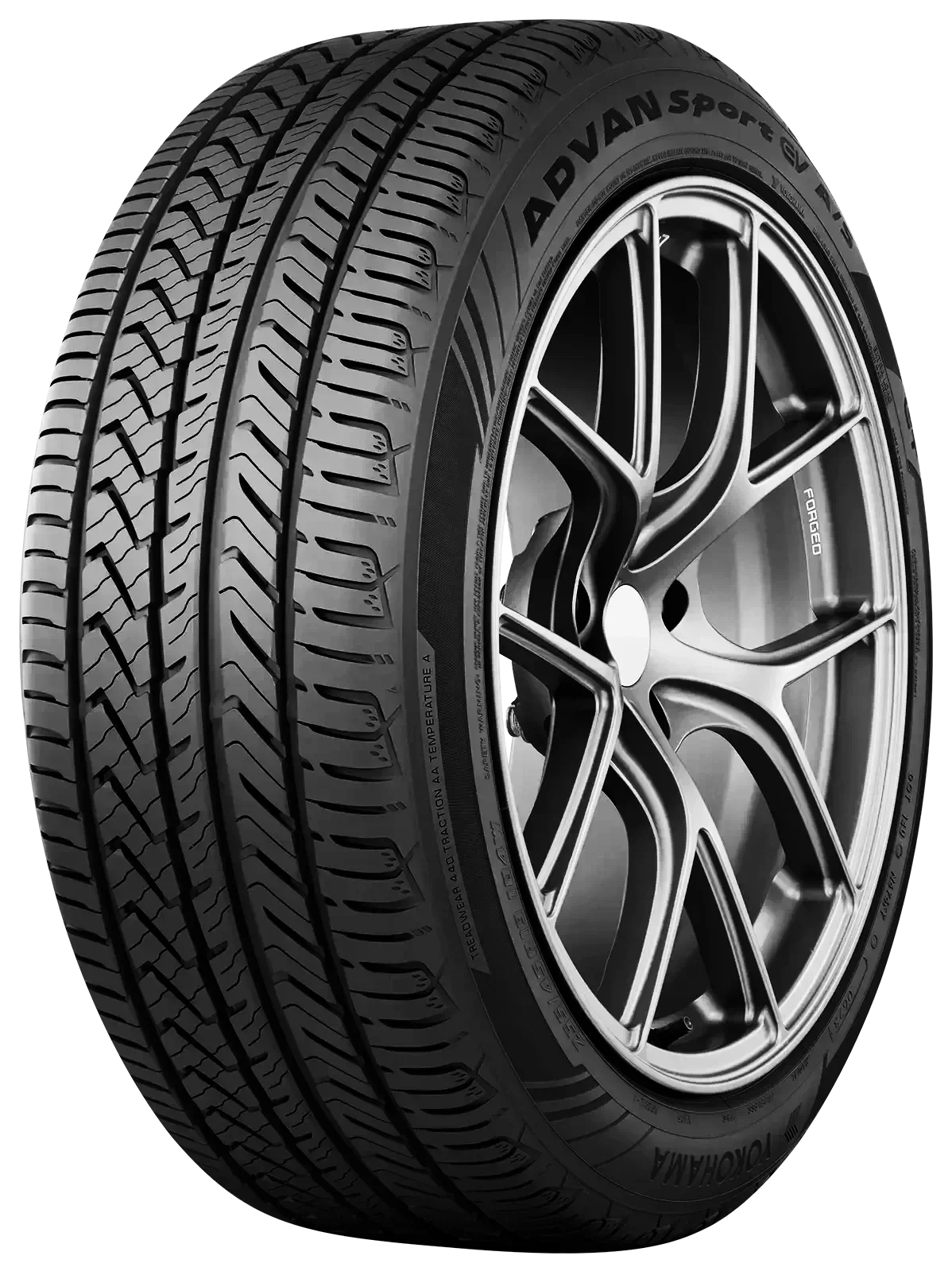

Yokohama Advan Sport EV A/S Tires

  • AA Grade Traction

  • A Grade Temperature Control

  • Y Speed Rating

  • Specially Designed for EV Torque

Infrared Tire Temperature sensors

  • Surface Temp Data Collection

  • Wheel Well Mounted Sensors

  • Self Cleaning Lenses

Suspension Mounted Load Sensors

  • Weight Transfer Telemetry Data on Each Corner

  • Allows for High Fidelity Road and Track Data Collection

  • Allows for Calculated Grip Limits; Turning Radius & Speed Optimization, and Tire Health Measurement
